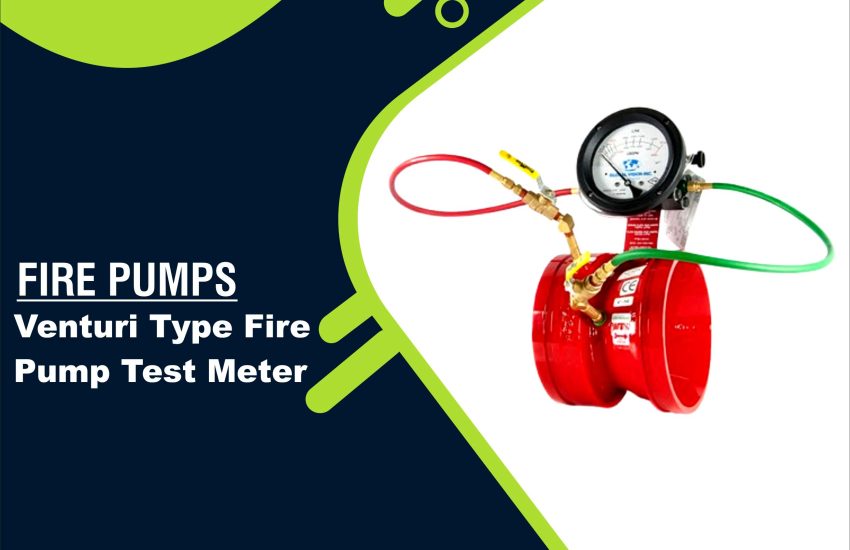

Venturi Type Fire Pump Test Meter Looking for a reliable, accurate, and FM Approved Venturi fire pump test meter for your fire protection system? This Venturi Type Fire Pump Test Meter, available in sizes from 50mm to 300mm (2″ to 12″), is designed to measure the flow rate of water during fire pump testing with precision and durability. Built with carbon steel and tested to high-pressure ratings, this flow meter is engineered to meet industry standards for performance and safety.

Product Overview

A Venturi fire pump test meter is a critical component in fire protection systems, providing accurate measurement of pump output without discharging water to waste. It works using the Venturi principle, which creates a pressure differential as water flows through a narrowed section, allowing precise flow rate calculations. This meter ensures fire pump efficiency and compliance with regulatory testing requirements.

Key Specifications

• Size Range: 50mm to 300mm (2″ to 12″)
• Body Types: Grooved, Butt Weld, Flanged
• Working Pressure: 375 psi to 500 psi
• Working Temperature: up to 80°C (176°F)
• Material: High-strength Carbon Steel
• Approvals: FM Approved for sizes 50mm – 300mm (2″ – 12″)

Features and Benefits

• ✅ Wide Size Range: Available from 2 inches to 12 inches, covering most commercial and industrial fire pump installations.
• ✅ Multiple Connection Types: Choose from grooved, butt weld, or flanged ends for flexible integration into various piping systems.
• ✅ High-Pressure Rating: Designed to operate under 375 psi to 500 psi, suitable for demanding fire suppression environments.
• ✅ Durable Construction: Built from carbon steel, this Venturi test meter offers exceptional strength and corrosion resistance.
• ✅ Temperature Tolerance: Performs reliably at operating temperatures up to 80°C (176°F).
• ✅ FM Approved: Certified by FM Global, ensuring the product meets rigorous fire safety and performance standards.

Applications

This Venturi type fire pump test meter is ideal for use in:

• Fire protection systems
• Commercial and industrial fire pump installations
• Fire sprinkler system testing
• NFPA fire pump flow test compliance
• Water flow measurement in high-pressure systems

Why Choose a Venturi Type Fire Pump Test Meter?

Venturi meters are preferred for fire pump testing due to their non-intrusive, low-maintenance design, accuracy, and minimal pressure loss. Unlike other flow meters, they allow in-line testing without discharging large volumes of water, making them cost-effective and environmentally friendly. With FM Approval, this test meter meets global fire safety compliance standards.
