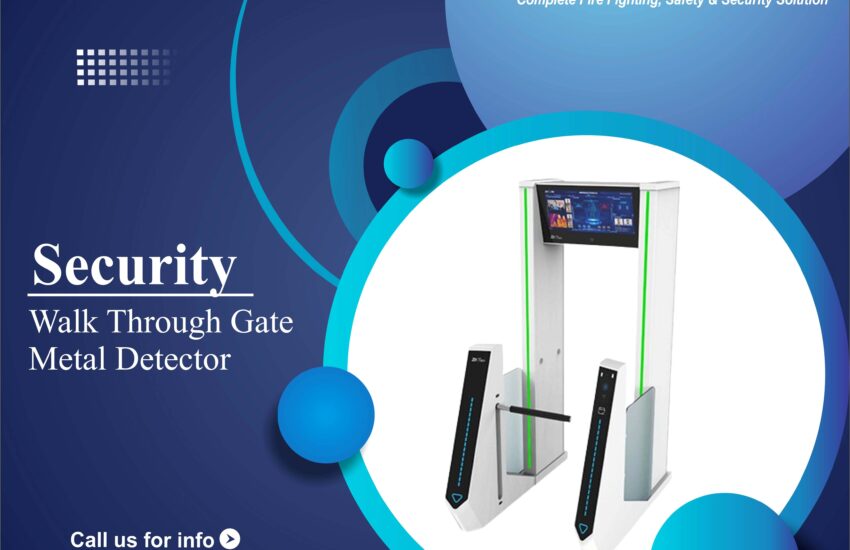

Walk Through Gate Metal Detector is an advanced indoor security screening solution designed for high-traffic areas such as airports, offices, schools, stadiums, government facilities, industrial sites, and public events. Engineered for precision, safety, and efficiency, it combines metal detection, thermal imaging, access control, and optional identification features to provide a complete security system for modern environments.
Key Features
✔ 33 Detection Zones
The gate is equipped with 33 independent detection zones that accurately pinpoint the location of metallic objects on the body. With 500 adjustable sensitivity levels, users can tailor the detection strength according to security requirements.
✔ Thermal Imaging & Temperature Screening
The built-in temperature screening system enhances health safety by identifying individuals with elevated body temperature.
- Accuracy: ±0.3°C (±0.54°F)
- Alarm Threshold: 37.3°C (99.14°F)
- Detection Distance: 1000mm – 2000mm
✔ Large 29-Inch Monitoring Screen
Includes a 29-inch monitor for displaying real-time images, temperature data, video footage, and identification results when enabled.
✔ Optional Access Control System
An optional version includes a brushless motor-controlled entrance system with a drop arm barrier for controlling pedestrian flow.
- Drop Arm Length: 620mm
- Transparent Acrylic Panels: 620mm × 10mm × 1098mm (2 pcs)
- Mechanical Lifespan: 2 million cycles
✔ Optional Facial Recognition & RFID
Another enhanced version includes high-speed identity verification features:
- Face Capacity: up to 30,000 records
- Card Capacity: up to 30,000 (ID & IC cards)
- Recognition Speed: ≤ 0.5 seconds
✔ Optional Gas Detection
Some configurations support TVOC gas detection, providing additional environmental safety monitoring.
✔ Comprehensive Security Functions
Both configurations support:
- Metal detection
- Thermal imaging
- Video surveillance
- Centralized software integration for data and access management
Technical Specifications
Operating System
- Android OS
- RAM: 2GB
- Storage: 2TB
Operating Conditions
- Temperature: 10°C – 35°C
- Indoor use only
Working Frequency
- 5.7kHz – 9.6kHz
Dimensions & Packaging
Standard Version
- Gate Size: 620mm × 1046mm × 2460mm
- Packing:
- Door Panel: 2550 × 720 × 458mm (140kg)
- Control Unit: 860 × 580 × 486mm (31kg)
Enhanced Version with Access Control
- Gate Size: 1730mm × 1046mm × 2460mm
- Entrance Control Section: 1730mm × 1046mm × 1350mm
- Packing:
- Door Panel: 2550 × 720 × 458mm (140kg)
- Control Unit + Turnstile Module: 2100 × 530 × 1603mm (180kg)
Main Advantages
- 33-zone detection for precise object localization
- 500-level sensitivity adjustment
- Thermal imaging for quick body temperature screening
- 29-inch display for monitoring and recording
- Optional access control with drop arm barrier
- Optional facial recognition and RFID verification
- Optional environmental gas detection
- Reliable indoor security system for high-traffic areas
